The GlobalVAC Oil less Rotary Vane Medical vacuum systems are available in 1 to 8.9 hp and mounted on a horizontal receiver. Oil less vacuum pump systems are also available on a vertical receiver for 1 to 4hp. The system is built with isolation valve, check valve and pump mounted quick release inlet filter. The receiver for this oil less vacuum pump is equipped with a sight glass, manual drain valve and three valve by-pass with process inlet valve. The System is operated by a mounted and wired NFPA compliant Duplex PLC Control Panel.

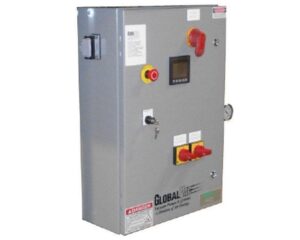

Duplex NFPA PLC Control Panel Including:
- 120V Control Transformer with CB Protected Primary/Secondary Circuits
- PLC Touch Screen & Keypad integrated with HMI
- H/O/A Switch, Run Light, and Hour Meter integrated into PLC
- 120Vac/24vdc Power Supply
- UL 508 Listed/NEMA 12 Enclosure
- Finger Safe Power Distribution Block
- Auto Restart after Power Outage
- Door Mounted Disconnect
- System Fault Indicator display on PLC
- System Parameters selection via PLC
- Door Mounted Motor Circuit Protector for Each Pump
- PLC By-pass allows Pump Operation with MCPs
- Dry Contacts for Remote Monitoring
- Full Voltage Motor Starter for Each Pump
MODEL NUMBER | HP | CAPACITY PUMP/SYSTEM | MAXIMUM VACUUM | ACFM Capacity @ 19” Hg | SCFM Capacity @ 19” Hg | STANDARD RECEIVER |
|---|---|---|---|---|---|---|
GPBKD-16-80H | 1 | 11/22 | 27″Hg | 18 | 6.6 | 80 GAL HORIZONTAL
|
GPBKD-16-80V | 1 | 11/22 | 27″Hg | 18 | 6.6 | 80 GAL VERTICAL |
GPBKD-25-80H | 1.2 | 18/38 | 27″Hg | 29 | 10.7 | 80 GAL HORIZONTAL
|
GPBKD-25-80V | 1.2 | 18/38 | 27″Hg | 29 | 10.7 | 80 GAL VERTICAL
|
GPBKD-40-120H | 2 | 28/56 | 27″Hg | 45 | 16.5 | 120 GAL HORIZONTAL
|
GPBKD-40-120V | 2 | 28/56 | 27″Hg | 45 | 16.5 | 120 GAL VERTICAL
|
GPBKD-60-120H | 4 | 39/78 | 27″Hg | 64 | 23.5 | 120 GAL HORIZONTAL
|
GPBKD-60-120V | 4 | 39/78 | 27″Hg | 64 | 23.5 | 120 GAL VERTICAL
|
GPBKD-80-120H | 4 | 48/96 | 27”Hg | 75 | 27.5 | 120 GAL HORIZONTAL
|
GPBKD-100-120H | 5 | 69/138 | 27″Hg | 105 | 38.5 | 120 GAL HORIZONTAL
|
GPBKD-140-240H | 6.4 | 95/190 | 24″Hg | 150 | 55 | 240 GAL HORIZONTAL
|
GPBKD-2200-240H | 6.4 | 128/256 | 24″Hg | 200 | 73 | 240 GAL HORIZONTAL
|
GPBKD-2250-240H | 8.9 | 174/348 | 24″Hg | 290 | 106 | 240 GAL HORIZONTAL
|
