Modular Medical Oil-Less Rotary Vane Vacuum Systems
Medical oil-less rotary vane vacuum systems offer impeccable reliability and efficiency without the need for oil lubrication. Designed with precision and patient safety in mind, our vacuum systems ensure clean and contaminant-free operation, making them ideal for critical medical applications. Additionally, with their modular configuration, they seamlessly integrate into various medical environments, providing consistent and dependable vacuum levels. Trusted by healthcare professionals worldwide, GlobalVac & Air’s vacuum systems set the standard for excellence in medical vacuum technology, empowering medical facilities to deliver superior patient care with confidence and peace of mind.
Duplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VV01B-XXM-08H
| 1.2 | 25.1 | 18 | 7 | 80 Gallon Horizontal
| Coming Soon | VVXXB-XXM
|
VV02B-XXM-08H
| 2 | 25.1 | 28 | 10 | 80 Gallon Horizontal
| Coming Soon | |
VV03B-XXM-12H
| 3.5 | 26.6 | 42 | 15 | 120 Gallon Horizontal
| Coming Soon | |
VV04B-XXM-12H
| 4.8 | 26.6 | 66 | 24 | 120 Gallon Horizontal
| Coming Soon | |
VV01B-XXM-12V
| 1.2 | 25.1 | 18 | 7 | 120 Gallon Vertical
| Coming Soon | |
VV02B-XXM-12V
| 2 | 25.1 | 28 | 10 | 120 Gallon Vertical
| VV02B-XXM-12V |
Duplex Frame
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver / Orientation | Drawing | Spec sheet |
|---|---|---|---|---|---|---|---|
VV01F-XXM-08V
| 1.2 | 25.1 | 18 | 7 | 80 Gallon Vertical
| Coming Soon | VVXXF-XXM-08V
|
VV02F-XXM-08V
| 2 | 25.1 | 28 | 10 | 80 Gallon Vertical
| VV02F-XXM-08V | |
VV03F-XXM-08V
| 3.5 | 26.6 | 42 | 15 | 80 Gallon Vertical
| Coming Soon | |

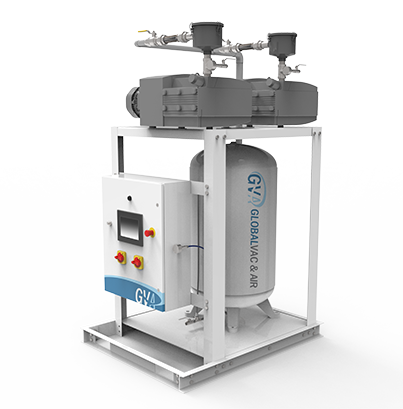

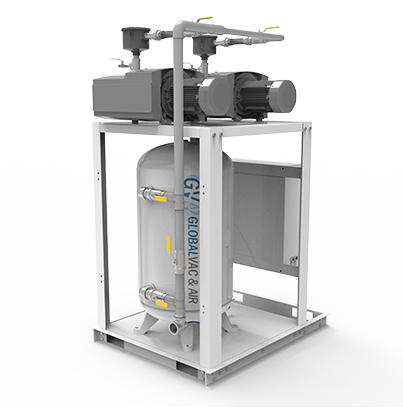

VV05F-XXM-08V
| 4.8 | 26.6 | 66 | 24 | 80 Gallon Vertical
| VV05F-XXM-08V | |
VV03F-XXM-06H
| 3.5 | 26.6 | 42 | 15 | 60 Gallon Horizontal
| Coming Soon | VVXXF-XXM-06H
|
VV04F-XXM-06H
| 4.8 | 26.6 | 66 | 24 | 60 Gallon Horizontal
| Coming Soon | |
VV06F-XXM-06H-008
| 6.4 | 23.6 | 91 | 33 | 60 Gallon Horizontal
| Coming Soon |
Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver / Orientation | Drawing | Spec sheet |
|---|---|---|---|---|---|---|---|
VV04D-XXM-12V
| 4.8 | 26.6 | 66 | 24 | 120 Gallon Vertical
| Coming Soon | VVXXD-XXM
|
VV06D-XXM-12V-008
| 6.4 | 23.6 | 91 | 33 | 120 Gallon Vertical
| Coming Soon | |
VV06D-XXM-20V
| 6.4 | 24 | 128 | 47 | 200 Gallon Vertical
| Coming Soon | |
VV08D-XXM-20V
| 8.9 | 24 | 169 | 62 | 200 Gallon Vertical
| Coming Soon | |
VV12D-XXM-20V
| 12.1 | 27 | 174 | 64 | 200 Gallon Vertical
| Coming Soon | |
VV12D-XXM-24V
| 12.1 | 27 | 174 | 64 | 240 Gallon Vertical
| Coming Soon |
Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VV04T-XXM-12V
| 4.8 | 26.6 | 66 | 48 | 120 Gallon Vertical
| Coming Soon | VVXXT-XXM |
VV06T-XXM-12V-008
| 6.4 | 23.6 | 91 | 67 | 120 Gallon Vertical
| Coming Soon | |
VV06T-XXM-20V
| 6.4 | 24 | 128 | 94 | 200 Gallon Vertical
| Coming Soon | |
VV08T-XXM-20V
| 8.9 | 24 | 169 | 124 | 200 Gallon Vertical
| Coming Soon |
NFPA PLC Control Panel Including:
- Dual 120V Control Transformer with CB Protected Primary/Secondary Circuits
- PLC Touch Screen & Keypad integrated with HMI
- H/O/A Switch, Run Light, and Hour Meter integrated into PLC
- Dual 120Vac/24vdc Power Supply
- UL 508 Listed/NEMA 12 Enclosure
- Finger Safe Power Distribution Block
- Auto Restart after Power Outage
- Door Mounted Disconnect
- System Fault Indicator display on PLC
- System Parameters selection via PLC
- Door Mounted Motor Circuit Protector for Each Pump
- PLC By-pass allows Pump Operation with MCPs
- Dry Contacts for Remote Monitoring
- Full Voltage Motor Starter for Each Pump
Need Help Picking the Best System for Your Application?
Our team of seasoned experts is dedicated to guiding you through the process of selecting the ideal system for your unique application. Additionally, with their wealth of knowledge and experience, they’ll carefully assess your requirements and provide tailored recommendations to ensure optimal performance and efficiency.
