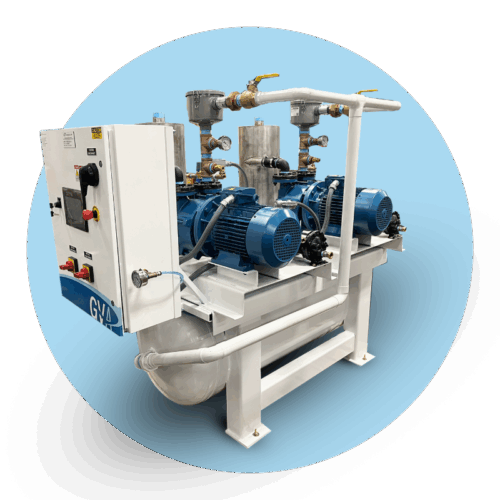

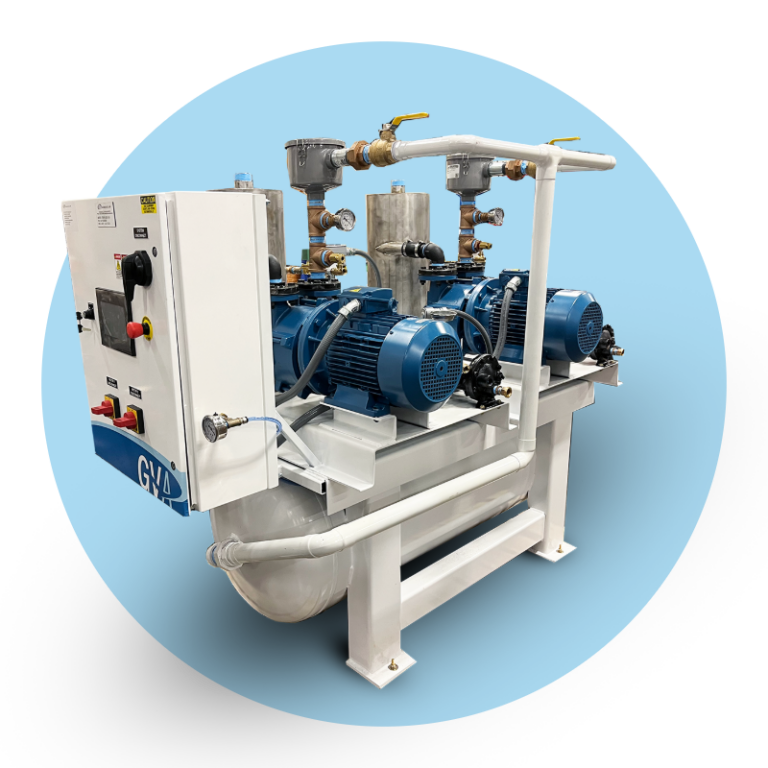

Modular Medical Water Sealed Liquid Ring Vacuum Systems
Our modular medical water-sealed liquid ring vacuum systems are tailored to meet the exacting standards of medical facilities worldwide. Engineered with precision and reliability as top priorities, these modular systems offer unparalleled performance and efficiency in medical vacuum technology. Utilizing water as a sealing medium ensures airtight operation, mitigating the risk of contamination and guaranteeing patient safety. With their modular design, these systems provide seamless integration into various medical environments, from hospitals to clinics, delivering consistent and dependable vacuum levels for critical medical applications such as suction for surgical procedures and medical gas supply. Trusted by healthcare professionals globally, GlobalVac & Air’s vacuum systems represent excellence in medical vacuum technology, supporting healthcare facilities in delivering superior patient care with confidence and reliability.
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver / Orientation |
|---|---|---|---|---|---|
Duplex Camel | |||||
VS03D-XXM-12H
| 3 | 28.9 | 37 | 14 | 120 Gallon Horizontal |
VS05D-XXM-12H | 5 | 28.9 | 70 | 26 | 120 Gallon Horizontal |
VS07D-XXM-12H | 7.5 | 28.9 | 105 | 38 | 120 Gallon Horizontal |
VS10D-XXM-12H | 10 | 28.9 | 140 | 51 | 120 Gallon Horizontal |
Triplex Camel | |||||
VS03T-XXM-12H | 3 | 28.9 | 37 | 27 | 120 Gallon Horizontal |
VS05T-XXM-12H | 5 | 28.9 | 70 | 51 | 120 Gallon Horizontal |
VS07T-XXM-12H | 7.5 | 28.9 | 105 | 77 | 120 Gallon Horizontal
|
VS10T-XXM-12H
| 10 | 28.9 | 140 | 103 | 120 Gallon Horizontal
|
Duplex/Triplex NFPA PLC Control Panel Including:
- Dual 120V Control Transformer with CB Protected Primary/Secondary Circuits
- PLC Touch Screen & Keypad integrated with HMI
- H/O/A Switch, Run Light, and Hour Meter integrated into PLC
- Dual 120Vac/24vdc Power Supply
- UL 508 Listed/NEMA 12 Enclosure
- Finger Safe Power Distribution Block
- Auto Restart after Power Outage
- Door Mounted Disconnect
- System Fault Indicator display on PLC
- System Parameters selection via PLC
- Door Mounted Motor Circuit Protector for Each Pump
- PLC By-pass allows Pump Operation with MCPs
- Dry Contacts for Remote Monitoring
- Full Voltage Motor Starter for Each Pump
