Industrial Scroll Air Compressor
Simplex Tank Mount
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 100 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH03A-XXD-06H | 3 | 145 | 7.7 | 60 Gallon Horizontal | CXXXA-XXD |
CH05A-XXD-06H | 5 | 145 | 13.3 | 60 Gallon Horizontal | |
CH05A-XXD-08H | 5 | 145 | 13.3 | 80 Gallon Horizontal | |
CH07A-XXD-12H | 7.5 | 145 | 17.7 | 120 Gallon Horizontal | |
CH07A-XXD-20H | 7.5 | 145 | 17.7 | 200 Gallon Horizontal | |
CH10A-XXD-12H | 10 | 145 | 25.4 | 120 Gallon Horizontal | |
CH10A-XXD-20H | 10 | 145 | 25.4 | 200 Gallon Horizontal | |
CC03A-XXD-06H | 3 | 115 | 8.7 | 60 Gallon Horizontal | |
CC05A-XXD-06H | 5 | 115 | 15.1 | 60 Gallon Horizontal | |
CC05A-XXD-08H | 5 | 115 | 15.1 | 80 Gallon Horizontal | |
CC07A-XXD-12H | 7.5 | 115 | 22.3 | 120 Gallon Horizontal | |
CC07A-XXD-20H | 7.5 | 115 | 22.3 | 200 Gallon Horizontal | |
CC10A-XXD-12H | 10 | 115 | 31.1 | 120 Gallon Horizontal | |
CC10A-XXD-20H | 10 | 115 | 31.1 | 200 Gallon Horizontal |

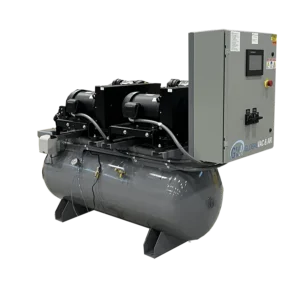

Duplex Tank Mount
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 100 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH03B-XXD-12H | 3 | 145 | 15.4 | 120 Gallon Horizontal | CXXXB-XXD |
CH05B-XXD-12H | 5 | 145 | 26.6 | 120 Gallon Horizontal | |
CH07B-XXD-12H | 7.5 | 145 | 35.4 | 120 Gallon Horizontal | |
CH07B-XXD-20H | 7.5 | 145 | 35.4 | 200 Gallon Horizontal | |
CH10B-XXD-12H | 10 | 145 | 50.8 | 120 Gallon Horizontal | |
CH10B-XXD-20H | 10 | 145 | 50.8 | 200 Gallon Horizontal | |
CC03B-XXD-12H | 3 | 115 | 17.4 | 120 Gallon Horizontal | |
CC05B-XXD-12H | 5 | 115 | 30.2 | 120 Gallon Horizontal | |
CC07B-XXD-12H | 7.5 | 115 | 44.6 | 120 Gallon Horizontal | |
CC07B-XXD-20H | 7.5 | 115 | 44.6 | 200 Gallon Horizontal | |
CC10B-XXD-12H | 10 | 115 | 62.2 | 120 Gallon Horizontal | |
CC10B-XXD-20H | 10 | 115 | 62.2 | 200 Gallon Horizontal |
Base Mount
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 100 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CC02S | 2 | 116 | 6.0 | – | CXXXS |
CC03S | 3 | 116 | 8.7 | ||
CC05S | 5 | 116 | 15.1 | ||
CC07S | 7.5 | 116 | 22.3 | ||
CC10S | 10 | 116 | 31.1 | ||
CH03S | 3 | 145 | 7.7 | ||
CH05S | 5 | 145 | 13.3 | ||
CH07S | 7.5 | 145 | 17.7 | ||
CH10S | 10 | 145 | 25.4 |
Why Choose GlobalVac & Air’s Industrial Scroll Air Compressors?
For demanding industrial environments, our Industrial Scroll Air Compressors offer oil-free operation, quiet performance, and long-lasting reliability. Here’s why they are the ideal solution for your industrial applications:
Oil-Free Technology for Pure, Clean Air
Our oil-free scroll air compressors deliver clean, dry air to industrial applications that require pure air without contamination. Whether you're in manufacturing, chemical processing, or food production, our compressors ensure that the air delivered is safe, clean, and suitable for sensitive industrial processes.
Quiet Operation for Noise-Sensitive Environments
Despite their power, our scroll compressors operate with minimal noise, making them perfect for noise-sensitive industrial environments such as factories, assembly lines, and packaging plants. The low-noise operation helps maintain a safer, more comfortable working environment for employees.
Durable, Reliable Performance for Continuous-Duty Applications
Our industrial scroll compressors are designed for high-performance and continuous-duty operation, ensuring reliable vacuum and air supply in demanding industrial settings. With their durable construction and minimal maintenance needs, these compressors are built to provide long-term, uninterrupted service.
System Features
Single Point Connections for process air, electrical, and condensate drainage make installation straightforward.
ASME Certified Receivers come standard with a corrosion resistant epoxy lining.
Intuitive Touchscreen Controls will give you all the information you need for the system operation, service requirements, alarms, and more.
Integrated Aftercoolers and Water Separators ensure bulk liquid removal and appropriate air temperatures for optimized dryer functionality.
Multi Skid Systems with Quick Connections between each skid ensure each skid will fit through a standard doorway and make installation straightforward.
Remote monitoring, BMS communication, & ethernet connectivity allow you to monitor your system in the way that best suits your needs.
Need Help Picking the Best System for Your Application?
Our team of seasoned experts is dedicated to guiding you through the process of selecting the ideal system for your unique application. Additionally, with their wealth of knowledge and experience, they’ll carefully assess your requirements and provide tailored recommendations to ensure optimal performance and efficiency.
