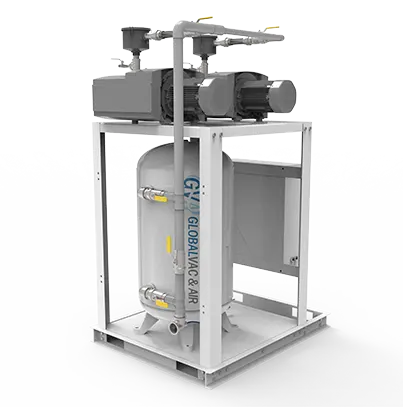

Modular Medical Oil-Less Rotary Vane Vacuum Systems
Medical oil-less rotary vane vacuum systems offer impeccable reliability and efficiency without the need for oil lubrication. Designed with precision and patient safety in mind, our vacuum systems ensure clean and contaminant-free operation, making them ideal for critical medical applications. Additionally, with their modular configuration, they seamlessly integrate into various medical environments, providing consistent and dependable vacuum levels. Trusted by healthcare professionals worldwide, GlobalVac & Air’s vacuum systems set the standard for excellence in medical vacuum technology, empowering medical facilities to deliver superior patient care with confidence and peace of mind.
Duplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VV01B-XXM-08H
| 1.2 | 25.1 | 18 | 7 | 80 Gallon Horizontal
| Coming Soon | VVXXB-XXM
|
VV02B-XXM-08H
| 2 | 25.1 | 28 | 10 | 80 Gallon Horizontal
| Coming Soon | |
VV03B-XXM-12H
| 3.5 | 26.6 | 42 | 15 | 120 Gallon Horizontal
| Coming Soon | |
VV04B-XXM-12H
| 4.8 | 26.6 | 66 | 24 | 120 Gallon Horizontal
| Coming Soon | |
VV01B-XXM-12V
| 1.2 | 25.1 | 18 | 7 | 120 Gallon Vertical
| Coming Soon | |
VV02B-XXM-12V
| 2 | 25.1 | 28 | 10 | 120 Gallon Vertical
| VV02B-XXM-12V |
Duplex Frame
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver / Orientation | Drawing | Spec sheet |
|---|---|---|---|---|---|---|---|
VV01F-XXM-08V
| 1.2 | 25.1 | 18 | 7 | 80 Gallon Vertical
| Coming Soon | VVXXF-XXM-08V
|
VV02F-XXM-08V
| 2 | 25.1 | 28 | 10 | 80 Gallon Vertical
| VV02F-XXM-08V | |
VV03F-XXM-08V
| 3.5 | 26.6 | 42 | 15 | 80 Gallon Vertical
| Coming Soon | |
VV05F-XXM-08V
| 4.8 | 26.6 | 66 | 24 | 80 Gallon Vertical
| VV05F-XXM-08V | |
VV03F-XXM-06H
| 3.5 | 26.6 | 42 | 15 | 60 Gallon Horizontal
| Coming Soon | VVXXF-XXM-06H
|
VV04F-XXM-06H
| 4.8 | 26.6 | 66 | 24 | 60 Gallon Horizontal
| Coming Soon | |
VV06F-XXM-06H-008
| 6.4 | 23.6 | 91 | 33 | 60 Gallon Horizontal
| Coming Soon |
Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver / Orientation | Drawing | Spec sheet |
|---|---|---|---|---|---|---|---|
VV04D-XXM-12V
| 4.8 | 26.6 | 66 | 24 | 120 Gallon Vertical
| Coming Soon | VVXXD-XXM
|
VV06D-XXM-12V-008
| 6.4 | 23.6 | 91 | 33 | 120 Gallon Vertical
| Coming Soon | |
VV06D-XXM-20V
| 6.4 | 24 | 128 | 47 | 200 Gallon Vertical
| Coming Soon | |
VV08D-XXM-20V
| 8.9 | 24 | 169 | 62 | 200 Gallon Vertical
| Coming Soon | |
VV12D-XXM-20V
| 12.1 | 27 | 174 | 64 | 200 Gallon Vertical
| Coming Soon | |
VV12D-XXM-24V
| 12.1 | 27 | 174 | 64 | 240 Gallon Vertical
| Coming Soon |
Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VV04T-XXM-12V
| 4.8 | 26.6 | 66 | 48 | 120 Gallon Vertical
| Coming Soon | VVXXT-XXM |
VV06T-XXM-12V-008
| 6.4 | 23.6 | 91 | 67 | 120 Gallon Vertical
| Coming Soon | |
VV06T-XXM-20V
| 6.4 | 24 | 128 | 94 | 200 Gallon Vertical
| Coming Soon | |
VV08T-XXM-20V
| 8.9 | 24 | 169 | 124 | 200 Gallon Vertical
| Coming Soon |
Why Choose GlobalVac & Air’s Medical Oil-Less Rotary Vane Vacuum Systems?
At GlobalVac & Air, we design medical oil-less rotary vane vacuum systems to meet the highest standards of performance, reliability, and patient safety. Here’s why healthcare professionals choose our vacuum systems:
Dry, Clean Operation with Reduced Maintenance
Our oil-less rotary vane vacuum systems operate with dry, clean air, eliminating the risk of oil contamination and ensuring that the air supplied to critical medical equipment is pure and safe. With fewer moving parts and a simplified design, these systems require minimal maintenance, reducing service costs and downtime. This makes them a dependable and cost-effective solution for hospitals and medical centers.
Ideal for Smaller Facilities or Localized Applications
Designed for smaller medical facilities or localized applications, our modular systems offer the flexibility to be easily integrated into space-constrained environments. Whether you’re outfitting a small clinic, outpatient center, or dental practice, our vacuum systems provide reliable vacuum levels and high performance without taking up valuable floor space.
Superior Performance with a Modular Design
Our modular design allows for easy installation and customization to fit your unique facility needs. Whether you’re upgrading an existing system or designing a new solution, our vacuum systems provide consistent, dependable vacuum levels that ensure safe and efficient medical operations. The flexible configuration options make it easy to scale the system to meet future requirements, ensuring that your facility can adapt as it grows.
Need Help Picking the Best System for Your Application?
Our team of seasoned experts is dedicated to guiding you through the process of selecting the ideal system for your unique application. Additionally, with their wealth of knowledge and experience, they’ll carefully assess your requirements and provide tailored recommendations to ensure optimal performance and efficiency.
