High-Performance, Medical Rotary Claw Vacuum Systems
At GlobalVac & Air, our Medical Oil-Free Rotary Claw Vacuum Systems are designed for performance, reliability, and safety. These systems provide clean, dry, oil-free vacuum, ensuring that your medical facility’s equipment and processes receive consistent, contaminant-free air. Trusted by healthcare professionals worldwide, our modular vacuum systems offer superior performance for hospitals, laboratories, and medical research centers, enabling safe, efficient operations that enhance patient care.
Duplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC02B-XXM-12H | 2 | 28.1 | 44 | 16 | 120 Gallon Horizontal | Coming Soon | VCXXB-XXM-12H |
VC03B-XXM-12H | 3 | 28.1 | 57 | 21 | 120 Gallon Horizontal | Coming Soon | |
VC04B-XXM-12H | 4 | 28.1 | 79 | 29 | 120 Gallon Horizontal | Coming Soon | |
VC05B-XXM-12H
| 5.4 | 28.1 | 103 | 38 | 120 Gallon Horizontal | Coming Soon |
Duplex Frame
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC02F-XXM-08V
| 2 | 28.1 | 44 | 16 | 80 Gallon Vertical | VC02F-XXM-08V | VCXXF-XXM-XXV |
VC03F-XXM-08V | 3 | 28.1 | 57 | 21 | 80 Gallon Vertical | Coming Soon | |
VC04F-XXM-08V | 4 | 28.1 | 79 | 29 | 80 Gallon Vertical | VC04F-XXM-08V | |
VC05F-XXM-08V | 5.4 | 28.1 | 103 | 38 | 80 Gallon Vertical | Coming Soon | |
VC02F-XXM-12V | 2 | 28.1 | 44 | 16 | 120 Gallon Vertical | Coming Soon | |
VC03F-XXM-12V | 3 | 28.1 | 57 | 21 | 120 Gallon Vertical | Coming Soon | |
VC04F-XXM-12V | 4 | 28.1 | 79 | 29 | 120 Gallon Vertical | Coming Soon | |
VC05F-XXM-12V | 5.4 | 28.1 | 103 | 38 | 120 Gallon Vertical | Coming Soon | |
VC02F-XXM-06H | 2 | 28.1 | 44 | 16 | 60 Gallon Horizontal | VC02F-XXM-06H | VCXXF-XXM-06H |
VC03F-XXM-06H | 3 | 28.1 | 57 | 21 | 60 Gallon Horizontal | VC03F-43M-06H | |
VC04F-XXM-06H | 4 | 28.1 | 79 | 29 | 60 Gallon Horizontal
| VC04F-XXM-06H | |
VC05F-XXM-06H | 5.4 | 28.1 | 103 | 38 | 60 Gallon Horizontal
| Coming Soon | |
VC06F-XXM-06H | 6.4 | 26.9 | 141 | 52 | 60 Gallon Horizontal | Coming Soon | |
VC07F-XXM-06H | 7.5 | 26.9 | 171 | 63 | 60 Gallon Horizontal
| VC07F-XXM-06H | |
VC08F-XXM-06H
| 8.7 | 25.5 | 212 | 78 | 60 Gallon Horizontal | Coming Soon |

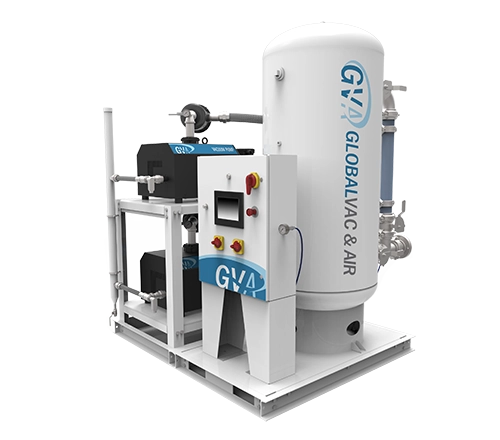

Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawings | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC04D-XXM-12V
| 4 | 28.1 | 79 | 29 | 120 Gallon Vertical
| VC04D-43M-12V | VCXXD-XXM-XXV
|
VC05D-XXM-12V
| 5.4 | 28.1 | 103 | 38 | 120 Gallon Vertical
| VC05D-XXM-12V | |
VC06D-XXM-20V
| 6.4 | 26.9 | 141 | 52 | 200 Gallon Vertical
| VC06D-XXM-20V | |
VC07D-XXM-20V
| 7.5 | 26.9 | 171 | 63 | 200 Gallon Vertical
| VC07D-XXM-20V | |
VC08D-XXM-20V
| 8.7 | 25.5 | 212 | 78 | 200 Gallon Vertical
| Coming Soon | |
VC10D-XXM-20V
| 10 | 24 | 250 | 92 | 200 Gallon Vertical
| Coming Soon | |
VC10D-XXM-24V
| 10 | 24 | 250 | 92 | 240 Gallon Vertical
| Coming Soon | |
VC15D-XXM-20V
| 15 | 24 | 353 | 129 | 200 Gallon Vertical
| Coming Soon | |
VC15D-XXM-24V
| 15 | 24 | 353 | 129 | 240 Gallon Vertical
| Coming Soon |
Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC05T-XXM-12V
| 5.4 | 28.1 | 103 | 75 | 120 Gallon Vertical
| Coming Soon | VCXXT-XXM-XXV, 5-9 HP |
VC05T-XXM-20V
| 5.4 | 28.1 | 103 | 75 | 200 Gallon Vertical
| Coming Soon | |
VC06T-XXM-20V
| 6.4 | 26.9 | 141 | 103 | 200 Gallon Vertical
| Coming Soon | |
VC06T-XXM-24V
| 6.4 | 26.9 | 141 | 103 | 240 Gallon Vertical
| Coming Soon | |
VC07T-XXM-20V
| 7.5 | 26.9 | 171 | 125 | 200 Gallon Vertical
| Coming Soon | |
VC07T-XXM-24V
| 7.5 | 26.9 | 171 | 125 | 240 Gallon Vertical
| VC07T-XXM-24V | |
VC08T-XXM-20V
| 8.7 | 25.5 | 212 | 155 | 200 Gallon Vertical
| Coming Soon | |
VC08T-XXM-24V
| 8.7 | 25.5 | 212 | 155 | 240 Gallon Vertical
| Coming Soon | |
VC10T-XXM-20V
| 10 | 24 | 250 | 183 | 200 Gallon Vertical
| VC10T-XXM-20V | VCXXT-XXM-XXV, 10-15 HP
|
VC10T-XXM-24V
| 10 | 24 | 250 | 183 | 240 Gallon Vertical
| Coming Soon | |
VC15T-XXM-20V
| 15 | 24 | 353 | 259 | 200 Gallon Vertical
| Coming Soon | |
VC15T-XXM-24V
| 15 | 24 | 353 | 259 | 240 Gallon Vertical
| Coming Soon |
Quad Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC05Q-XXM-20V | 5.4 | 28.1 | 103 | 113 | 200 Gallon Vertical
| Coming Soon | VCXXQ-XXM-XXV
|
VC06Q-XXM-20V
| 6.4 | 26.9 | 141 | 155 | 200 Gallon Vertical
| Coming Soon | |
VC07Q-XXM-20V
| 7.5 | 26.9 | 171 | 188 | 200 Gallon Vertical
| Coming Soon | |
VC07Q-XXM-24V
| 7.5 | 26.9 | 171 | 188 | 240 Gallon Vertical
| Coming Soon | |
VC08Q-XXM-20V
| 8.7 | 25.5 | 212 | 233 | 200 Gallon Vertical
| Coming Soon | |
VC08Q-XXM-24V
| 8.7 | 25.5 | 212 | 233 | 240 Gallon Vertical
| Coming Soon | |
VC10Q-XXM-20V
| 10 | 24 | 250 | 275 | 200 Gallon Vertical
| Coming Soon | |
VC10Q-XXM-24V
| 10 | 24 | 250 | 275 | 240 Gallon Vertical
| Coming Soon | |
VC15Q-XXM-20V
| 15 | 24 | 353 | 388 | 200 Gallon Vertical
| Coming Soon | |
VC15Q-XXM-24V
| 15 | 24 | 353 | 388 | 240 Gallon Vertical
| Coming Soon |
Why Choose GlobalVac & Air’s Medical Oil-Free Rotary Claw Vacuum Systems?
Our oil-free rotary claw vacuum systems offer a high-efficiency, low-maintenance solution for healthcare facilities, ensuring reliable performance and enhanced safety. Below are the key benefits of choosing our systems:
Oil-Free Technology for Clean, Dry Air
Our oil-free rotary claw vacuum systems provide clean, dry air without the risk of oil contamination. This is essential for applications like anesthesia machines, ventilators, and other life-support equipment where pure, uncontaminated air is crucial for optimal performance and patient safety.
High Efficiency with Optional Variable Speed Drive (VSD)
Equipped with Variable Speed Drive (VSD) technology, our vacuum systems provide high efficiency and energy savings by adjusting the compressor’s speed based on demand. This variable control ensures that energy is used efficiently, reducing operating costs, while maintaining consistent vacuum levels for critical medical equipment.
Minimal Maintenance and Operating Costs
Our rotary claw vacuum systems are built to be low-maintenance with fewer moving parts. This results in reduced wear and tear, leading to lower maintenance costs and less downtime. With minimal upkeep required, your facility can focus on what matters most: patient care.
Start Your Medical Vacuum Project with Confidence
GlobalVac & Air offers oil-free rotary claw vacuum systems designed for medical applications, providing reliable performance, efficiency, and quiet operation. Whether you need suction for surgical suites, air supply for life-support equipment, or vacuum for critical care, our systems ensure clean, dry air for all your healthcare needs.
