Modular Industrial Oil-Less Rotary Vane Vacuum Systems
Industrial oil-less rotary vane vacuum systems offer exceptional reliability and efficiency without the need for oil lubrication. Engineered with precision and performance in mind, our vacuum systems ensure clean and contaminant-free operation, making them ideal for critical industrial applications. Additionally, their modular configuration allows for seamless integration into various industrial environments, providing consistent and dependable vacuum levels. Trusted by professionals worldwide, GlobalVac & Air’s vacuum systems set the standard for excellence in industrial vacuum technology, empowering facilities to achieve superior performance with confidence and peace of mind.
Simplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Spec Sheet |
|---|---|---|---|---|---|---|
VV01A-XXD-06V
| 1.2 | 25.1 | 18 | 7 | 60 Gallon Vertical | VVXXA-XXL-XXV
|
VV02A-XXD-06V
| 2 | 25.1 | 28 | 10 | 60 Gallon Vertical | |
VV03A-XXD-08V
| 3.5 | 26.6 | 42 | 15 | 80 Gallon Vertical | |
VV04A-XXD-08V
| 4.8 | 26.6 | 66 | 24 | 80 Gallon Vertical |
Duplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Spec Sheet |
|---|---|---|---|---|---|---|
VV01B-XXD-08H
| 1.2 | 25.1 | 18 | 13 | 80 Gallon Horizontal | VVXXB-XXL
|
VV02B-XXD-08H
| 2 | 25.1 | 28 | 21 | 80 Gallon Horizontal | |
VV03B-XXD-12H
| 3.5 | 26.6 | 42 | 31 | 120 Gallon Horizontal | |
VV04B-XXD-12H
| 4.8 | 26.6 | 66 | 48 | 120 Gallon Horizontal | |
VV01B-XXD-08V
| 1.2 | 25.1 | 18 | 13 | 80 Gallon Vertical | |
VV02B-XXD-08V
| 2 | 25.1 | 28 | 21 | 80 Gallon Vertical |
Duplex Frame
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Spec Sheet |
|---|---|---|---|---|---|---|
VV01F-XXD-08V
| 1.2 | 25.1 | 18 | 13 | 80 Gallon Vertical | VVXXF-XXL-08V
|
VV02F-XXD-08V
| 2 | 25.1 | 28 | 21 | 80 Gallon Vertical | |
VV03F-XXD-08V
| 3.5 | 26.6 | 42 | 31 | 80 Gallon Vertical | |
VV04F-XXD-08V
| 4.8 | 26.6 | 66 | 48 | 80 Gallon Vertical | |
VV01F-XXD-06H
| 1.2 | 25.1 | 18 | 13 | 60 Gallon Horizontal | VVXXF-XXL-06H
|
VV02F-XXD-06H | 2 | 25.1 | 28 | 21 | 60 Gallon Horizontal | |
VV03F-XXD-06H | 3.5 | 26.6 | 42 | 31 | 60 Gallon Horizontal | |
VV04F-XXD-06H
| 4.8 | 26.6 | 66 | 48 | 60 Gallon Horizontal | |
VV06F-XXD-06H-008
| 6.4 | 23.6 | 91 | 67 | 60 Gallon Horizontal |
Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Spec Sheet |
|---|---|---|---|---|---|---|
VV04D-XXD-12V
| 4.8 | 26.6 | 66 | 48 | 120 Gallon Vertical | VVXXD-XXD-XXV
|
VV06D-XXD-20V-008
| 6.4 | 23.6 | 91 | 67 | 200 Gallon Vertical | |
VV06D-XXD-20V
| 6.4 | 24 | 128 | 94 | 200 Gallon Vertical | |
VV08D-XXD-20V
| 8.9 | 24 | 169 | 124 | 200 Gallon Vertical | |
VV12D-XXD-20V
| 12.1 | 27 | 174 | 127 | 200 Gallon Vertical |

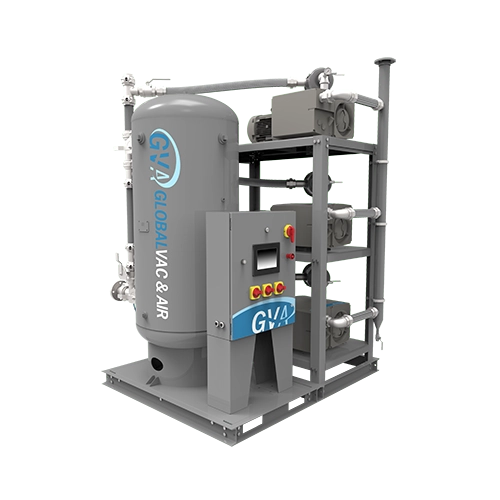

Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Spec Sheet |
|---|---|---|---|---|---|---|
VV04T-XXD-12V
| 4.8 | 26.6 | 66 | 73 | 120 Gallon Vertical | VVXXT-XXD |
VV06T-XXD-12V-008
| 6.4 | 23.6 | 91 | 100 | 120 Gallon Vertical | |
VV06T-XXD-20V
| 6.4 | 24 | 128 | 141 | 200 Gallon Vertical | |
VV08T-XXD-20V
| 8.9 | 24 | 169 | 186 | 200 Gallon Vertical |
Why Choose GlobalVac & Air’s Industrial Oil-Less Rotary Vane Systems?
At GlobalVac & Air, our Industrial Oil-Less Rotary Vane Vacuum Systems are engineered to meet the most demanding industrial environments. Here’s why our systems are the ideal choice for high-performance and clean, reliable vacuum:
Clean, Dry Vacuum Operation with Zero Risk of Oil Contamination
Our oil-less rotary vane vacuum systems provide clean, dry vacuum operation, eliminating the risk of oil contamination. This ensures pure, uncontaminated air for industrial processes, especially in environments where cleanliness and safety are critical. Perfect for industries like pharmaceuticals, food production, and electronics manufacturing, our systems keep contaminants out of your operations, improving the quality and reliability of your processes.
High Efficiency with Low Operating Costs
Engineered for high efficiency, our oil-less rotary vane vacuum systems are designed to reduce operating costs while maintaining consistent vacuum performance. By reducing energy consumption and maintenance requirements, these systems provide cost-effective solutions for facilities with demanding vacuum needs. With low operational costs, our vacuum systems ensure long-term savings for your business.
Perfect for Facilities with Stringent Cleanliness Requirements
Our oil-less systems are the perfect choice for facilities that require strict cleanliness standards. With no oil or lubricants used in the vacuum process, these systems eliminate the risk of contaminants in sensitive applications. Ideal for industries such as chemical processing, food manufacturing, and laboratories, our systems meet the highest cleanliness standards and ensure reliable performance in any setting.
Need Help Picking the Best System for Your Application?
Our team of seasoned experts is dedicated to guiding you through the process of selecting the ideal system for your unique application. Additionally, with their wealth of knowledge and experience, they’ll carefully assess your requirements and provide tailored recommendations to ensure optimal performance and efficiency.
