Laboratory Scroll Air Compressors
GlobalVac & Air offers oil-free laboratory scroll air compressors designed for research facilities, cleanrooms, and other lab applications. Engineered for efficiency, reliability, and quiet operation, our compressors provide clean, dry air essential for sensitive laboratory equipment, experiments, and precise applications.
Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 145 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH03D-XXL-08V
| 3
| 145
| 15.0
| 80 Gallon Vertical
| CHXXD-XXL |
CH05D-XXL-08V
| 5
| 145
| 25.8
| 80 Gallon Vertical
| |
CH07D-XXL-08V
| 7.5
| 145
| 34.4
| 80 Gallon Vertical
| |
CH07D-XXL-12V
| 7.5
| 145
| 34.4
| 120 Gallon Vertical
| |
CH10D-XXL-12V
| 10
| 145
| 49.4
| 120 Gallon Vertical
| |
CH10D-XXL-20V
| 10
| 145
| 49.4
| 200 Gallon Vertical
| |
CH10D-XXL-24V
| 10
| 145
| 49.4
| 240 Gallon Vertical
|
Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 145 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH05T-XXL-12V
| 5
| 145
| 38.7
| 120 Gallon Vertical
| CHXXT-XXL |
CH05T-XXL-20V
| 5
| 145
| 38.7
| 200 Gallon Vertical
| |
CH07T-XXL-12V
| 7.5
| 145
| 51.6
| 120 Gallon Vertical
| |
CH07T-XXL-20V
| 7.5
| 145
| 51.6
| 200 Gallon Vertical
| |

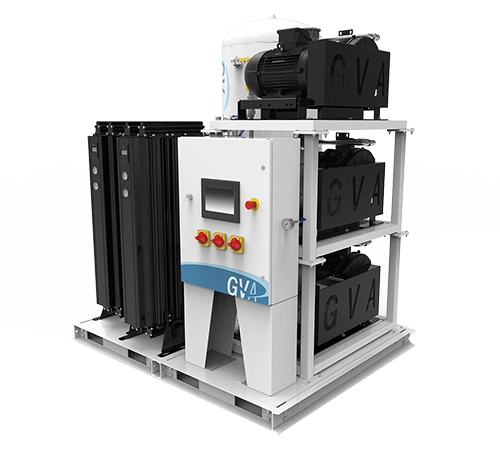

CH10T-XXL-12V
| 10
| 145
| 74.1
| 120 Gallon Vertical
| |
CH10T-XXL-20V
| 10
| 145
| 74.1
| 200 Gallon Vertical
| |
CH10T-XXL-24V
| 10
| 145
| 74.1
| 240 Gallon Vertical
| |
Quadruplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 145 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH05Q-XXL-12V
| 5
| 145
| 51.6
| 120 Gallon Vertical
| CHXXQ-XXL |
CH05Q-XXL-20V
| 5
| 145
| 51.6
| 200 Gallon Vertical
| |
CH07Q-XXL-20V
| 7.5
| 145
| 68.8
| 200 Gallon Vertical
| |
CH07Q-XXL-24V
| 7.5
| 145
| 68.8
| 240 Gallon Vertical
| |
CH10Q-XXL-20V
| 10
| 145
| 98.8
| 200 Gallon Vertical
| |
CH10Q-XXL-24V
| 10
| 145
| 98.8
| 240 Gallon Vertical
| |
Pentaplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 145 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH05P-XXL-20V
| 5
| 145
| 64.5
| 200 Gallon Vertical
| CHXXP-XXL |
CH07P-XXL-20V
| 7.5
| 145
| 86.0
| 200 Gallon Vertical
| |
CH07P-XXL-24V
| 7.5
| 145
| 86.0
| 240 Gallon Vertical
| |
CH10P-XXL-20V
| 10
| 145
| 123.5
| 200 Gallon Vertical
| |
CH10P-XXL-24V
| 10
| 145
| 123.5
| 240 Gallon Vertical
|
Hexaplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Pressure (PSIG) | System capacity @ 145 psig (SCFM) | Receiver / Orientation | Spec Sheet |
|---|---|---|---|---|---|
CH07H-XXL-20V
| 7.5
| 145
| 103.2
| 200 Gallon Vertical
| CHXXH-XXL |
CH07H-XXL-24V
| 7.5
| 145
| 103.2
| 240 Gallon Vertical
| |
CH10H-XXL-20V
| 10
| 145
| 148.2
| 200 Gallon Vertical
| |
CH10H-XXL-24V
| 10
| 145
| 148.2
| 240 Gallon Vertical
|
Why Choose GlobalVac & Air’s Laboratory Scroll Air Compressors?
For research labs and academic institutions, our Laboratory Scroll Air Compressors are built to provide oil-free and quiet performance for continuous-duty applications. Here’s why our compressors are the best solution for your laboratory needs:
Oil-Free Technology for Pure, Clean Air
Our scroll compressors use oil-free technology to ensure that your laboratory equipment receives pure, clean air. This eliminates the risk of oil contamination, which is crucial for maintaining the accuracy and integrity of sensitive equipment and experiments in research labs.
Quiet Operation for Noise-Sensitive Environments
Designed for quiet operation, our scroll compressors are ideal for research labs, academic environments, and cleanrooms, where minimal noise disruption is essential. This ensures a comfortable work environment for researchers, free from unnecessary noise distractions.
Durable, Reliable Performance for Continuous-Duty Applications
Built for continuous-duty, our scroll compressors deliver reliable performance with minimal downtime. The durable construction and low-maintenance design ensure that your laboratory can rely on the system to perform efficiently day in and day out.
System Features
Single Point Connections for process air, electrical, and condensate drainage make installation straightforward.
ASME Certified Receivers come standard with a corrosion resistant epoxy lining.
Intuitive Touchscreen Controls will give you all the information you need for the system operation, service requirements, alarms, and more.
Integrated Aftercoolers and Water Separators ensure bulk liquid removal and appropriate air temperatures for optimized dryer functionality.
Multi Skid Systems with Quick Connections between each skid ensure each skid will fit through a standard doorway and make installation straightforward.
Remote monitoring, BMS communication, & ethernet connectivity allow you to monitor your system in the way that best suits your needs.
Start Your Laboratory Air Solution with Confidence
GlobalVac & Air provides high-performance, oil-free scroll air compressors for laboratories, cleanrooms, and research institutions. Designed for reliability, efficiency, and quiet operation, our compressors provide the clean, dry air required for sensitive applications in laboratory environments.
