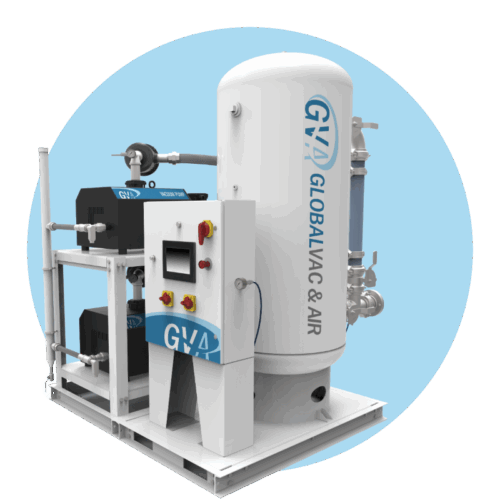

Medical Oil-Free Rotary Claw Vacuum Systems
Crafted with precision and reliability at the forefront, our modular oil-free rotary claw vacuum systems deliver unparalleled performance and efficiency for critical medical applications. Additionally, their innovative oil-free design ensures clean and contaminant-free operation, eliminating the risk of oil carryover and enhancing patient safety. Along with their expert design, the modular configuration of these systems offer seamless integration into various medical settings. From hospitals to laboratories, our vacuum systems provide consistent and dependable vacuum levels for crucial medical procedures. Trusted by healthcare professionals worldwide, GlobalVac & Air’s vacuum technology allows medical facilities to deliver superior patient care with utmost confidence and reliability.
Duplex Tank
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC02B-XXM-12H | 2 | 28.1 | 44 | 16 | 120 Gallon Horizontal | Coming Soon | VCXXB-XXM-12H |
VC03B-XXM-12H | 3 | 28.1 | 57 | 21 | 120 Gallon Horizontal | Coming Soon | |
VC04B-XXM-12H | 4 | 28.1 | 79 | 29 | 120 Gallon Horizontal | Coming Soon | |
VC05B-XXM-12H
| 5.4 | 28.1 | 103 | 38 | 120 Gallon Horizontal | Coming Soon |
Duplex Frame
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC02F-XXM-08V
| 2 | 28.1 | 44 | 16 | 80 Gallon Vertical | VC02F-XXM-08V | VCXXF-XXM-XXV |
VC03F-XXM-08V | 3 | 28.1 | 57 | 21 | 80 Gallon Vertical | Coming Soon | |
VC04F-XXM-08V | 4 | 28.1 | 79 | 29 | 80 Gallon Vertical | VC04F-XXM-08V | |
VC05F-XXM-08V | 5.4 | 28.1 | 103 | 38 | 80 Gallon Vertical | Coming Soon | |
VC02F-XXM-12V | 2 | 28.1 | 44 | 16 | 120 Gallon Vertical | Coming Soon | |
VC03F-XXM-12V | 3 | 28.1 | 57 | 21 | 120 Gallon Vertical | Coming Soon | |
VC04F-XXM-12V | 4 | 28.1 | 79 | 29 | 120 Gallon Vertical | Coming Soon | |
VC05F-XXM-12V | 5.4 | 28.1 | 103 | 38 | 120 Gallon Vertical | Coming Soon | |
VC02F-XXM-06H | 2 | 28.1 | 44 | 16 | 60 Gallon Horizontal | VC02F-XXM-06H | VCXXF-XXM-06H |
VC03F-XXM-06H | 3 | 28.1 | 57 | 21 | 60 Gallon Horizontal | VC03F-43M-06H | |
VC04F-XXM-06H | 4 | 28.1 | 79 | 29 | 60 Gallon Horizontal
| VC04F-XXM-06H | |
VC05F-XXM-06H | 5.4 | 28.1 | 103 | 38 | 60 Gallon Horizontal
| Coming Soon | |
VC06F-XXM-06H | 6.4 | 26.9 | 141 | 52 | 60 Gallon Horizontal | Coming Soon | |
VC07F-XXM-06H | 7.5 | 26.9 | 171 | 63 | 60 Gallon Horizontal
| VC07F-XXM-06H | |
VC08F-XXM-06H
| 8.7 | 25.5 | 212 | 78 | 60 Gallon Horizontal | Coming Soon |
Duplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawings | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC04D-XXM-12V
| 4 | 28.1 | 79 | 29 | 120 Gallon Vertical
| VC04D-43M-12V | VCXXD-XXM-XXV
|
VC05D-XXM-12V
| 5.4 | 28.1 | 103 | 38 | 120 Gallon Vertical
| VC05D-XXM-12V | |
VC06D-XXM-20V
| 6.4 | 26.9 | 141 | 52 | 200 Gallon Vertical
| Coming Soon | |
VC07D-XXM-20V
| 7.5 | 26.9 | 171 | 63 | 200 Gallon Vertical
| VC07D-XXM-20V | |
VC08D-XXM-20V
| 8.7 | 25.5 | 212 | 78 | 200 Gallon Vertical
| Coming Soon | |
VC10D-XXM-20V
| 10 | 24 | 250 | 92 | 200 Gallon Vertical
| Coming Soon | |
VC10D-XXM-24V
| 10 | 24 | 250 | 92 | 240 Gallon Vertical
| Coming Soon | |
VC15D-XXM-20V
| 15 | 24 | 353 | 129 | 200 Gallon Vertical
| Coming Soon | |
VC15D-XXM-24V
| 15 | 24 | 353 | 129 | 240 Gallon Vertical
| Coming Soon |
Triplex Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC05T-XXM-12V
| 5.4 | 28.1 | 103 | 75 | 120 Gallon Vertical
| Coming Soon | VCXXT-XXM-XXV, 5-9 HP |
VC05T-XXM-20V
| 5.4 | 28.1 | 103 | 75 | 200 Gallon Vertical
| Coming Soon | |
VC06T-XXM-20V
| 6.4 | 26.9 | 141 | 103 | 200 Gallon Vertical
| Coming Soon | |
VC06T-XXM-24V
| 6.4 | 26.9 | 141 | 103 | 240 Gallon Vertical
| Coming Soon | |
VC07T-XXM-20V
| 7.5 | 26.9 | 171 | 125 | 200 Gallon Vertical
| Coming Soon | |
VC07T-XXM-24V
| 7.5 | 26.9 | 171 | 125 | 240 Gallon Vertical
| Coming Soon | |
VC08T-XXM-20V
| 8.7 | 25.5 | 212 | 155 | 200 Gallon Vertical
| Coming Soon | |
VC08T-XXM-24V
| 8.7 | 25.5 | 212 | 155 | 240 Gallon Vertical
| Coming Soon | |
VC10T-XXM-20V
| 10 | 24 | 250 | 183 | 200 Gallon Vertical
| Coming Soon | VCXXT-XXM-XXV, 10-15 HP
|
VC10T-XXM-24V
| 10 | 24 | 250 | 183 | 240 Gallon Vertical
| Coming Soon | |
VC15T-XXM-20V
| 15 | 24 | 353 | 259 | 200 Gallon Vertical
| Coming Soon | |
VC15T-XXM-24V
| 15 | 24 | 353 | 259 | 240 Gallon Vertical
| Coming Soon |
Quad Stack
Model Number | Pump Motor Rating (HP) | Maximum Vacuum (” HgV) | Nominal Capacity (ACFM/pump) | System Capacity @ 19″ Hg (SCFM/system) | Receiver/Orientation | Drawing | Spec Sheet |
|---|---|---|---|---|---|---|---|
VC05Q-XXM-20V | 5.4 | 28.1 | 103 | 113 | 200 Gallon Vertical
| Coming Soon | VCXXQ-XXM-XXV
|
VC06Q-XXM-20V
| 6.4 | 26.9 | 141 | 155 | 200 Gallon Vertical
| Coming Soon | |
VC07Q-XXM-20V
| 7.5 | 26.9 | 171 | 188 | 200 Gallon Vertical
| Coming Soon | |
VC07Q-XXM-24V
| 7.5 | 26.9 | 171 | 188 | 240 Gallon Vertical
| Coming Soon | |
VC08Q-XXM-20V
| 8.7 | 25.5 | 212 | 233 | 200 Gallon Vertical
| Coming Soon | |
VC08Q-XXM-24V
| 8.7 | 25.5 | 212 | 233 | 240 Gallon Vertical
| Coming Soon | |
VC10Q-XXM-20V
| 10 | 24 | 250 | 275 | 200 Gallon Vertical
| Coming Soon | |
VC10Q-XXM-24V
| 10 | 24 | 250 | 275 | 240 Gallon Vertical
| Coming Soon | |
VC15Q-XXM-20V
| 15 | 24 | 353 | 388 | 200 Gallon Vertical
| Coming Soon | |
VC15Q-XXM-24V
| 15 | 24 | 353 | 388 | 240 Gallon Vertical
| Coming Soon |
NFPA PLC Control Panel Including:
- Dual 120V Control Transformer with CB Protected Primary/Secondary Circuits
- PLC Touch Screen & Keypad integrated with HMI
- H/O/A Switch, Run Light, and Hour Meter integrated into PLC
- Dual 120Vac/24vdc Power Supply
- UL 508 Listed/NEMA 12 Enclosure
- Finger Safe Power Distribution Block
- Auto Restart after Power Outage
- Door Mounted Disconnect
- System Fault Indicator display on PLC
- System Parameters selection via PLC
- Door Mounted Motor Circuit Protector for Each Pump
- PLC By-pass allows Pump Operation with MCPs
- Dry Contacts for Remote Monitoring
- Full Voltage Motor Starter for Each Pump
